Valve Body 5810
Kategori
Stok Kodu
CHKMPRY7

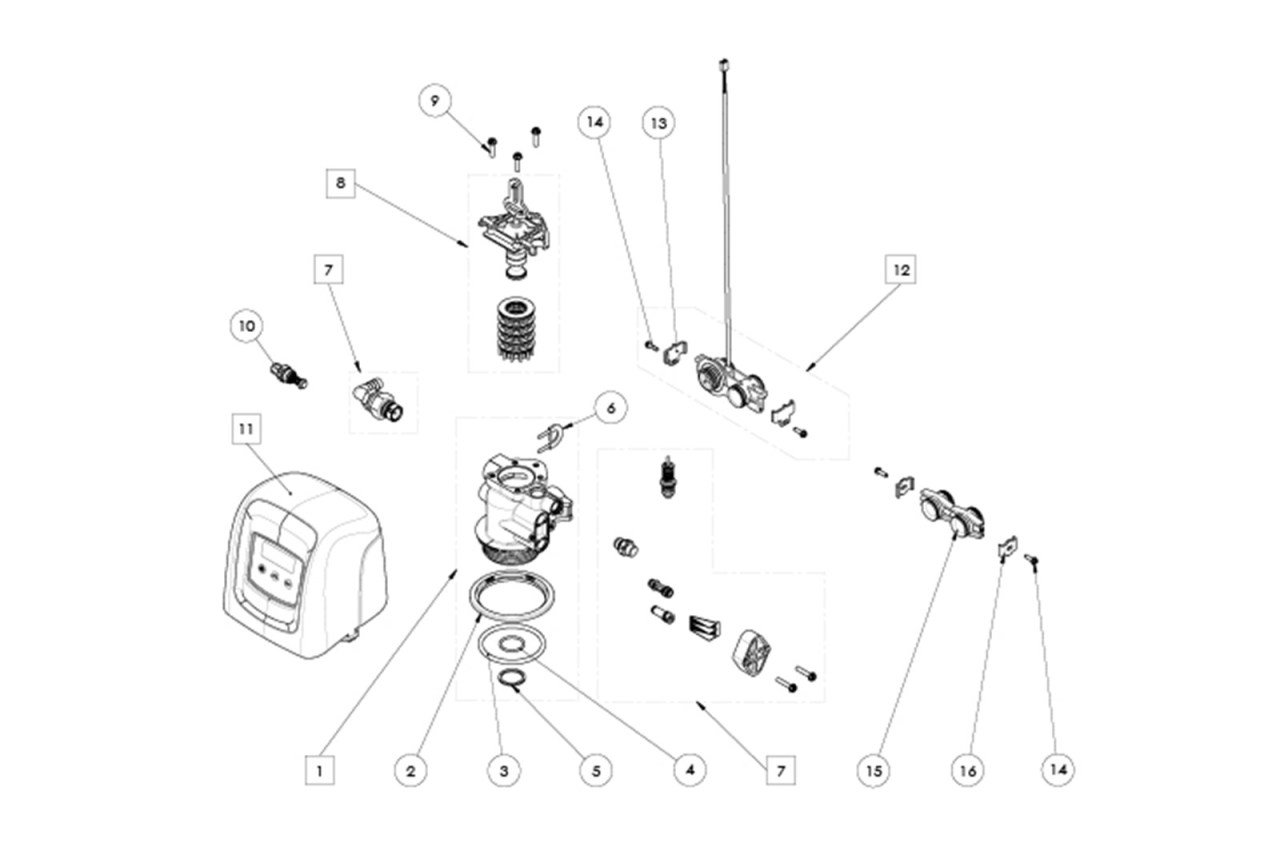

| Nº | Vendor Code | Description |
|---|---|---|
| N.S. | 40951SP | O-ring-220 |
| N.S. | DLFC o-ring-021, CSTM | |
| 1 | Piston assembly, downflow 5810 | |
| 1 | Piston assembly, upflow 5810 | |
| 1 | Piston assembly, filter 5810 | |
| 2 | kit mounting 5810 / 5812 | |
| 3 | BR19791-01 | Meter cable assembly |
| 4 | 26575 | Brine valve, 1600 assembly |
| 5 | 40947-01 | Brine valve plug |
| 6 | 13302-01SP | O-ring-014 |
| 7 | 28387-0.50 | BLFC assembly 3/8", 0.50 gpm |
| 7 | 28387-0.12 | BLFC assembly 3/8", 0.12 gpm |
| 7 | 28387-0.25 | BLFC assembly 3/8", 0.25 gpm |
| 7 | 28387-1 | BLFC assembly 3/8", 1.00 gpm |
| 8 | 40576SP | Clip H, plastic |
| 9 | Cap, regulated injector, 20 PSI | |
| 10 | 12977-01SP | O-ring-015, 560CD |
| 11 | 28370 | Injector cap assembly |
| 12 | 61454-3 | Injector assembly, #3, yellow |
| 12 | 61454-1 | Injector assembly, #1, white |
| 12 | 61454-4 | Injector assembly, #4, green |
| 12 | 61454-2 | Injector assembly, #2, blue |
| 12 | 61454-5 | Injector assembly, #5, grey |
| 12 | 61454-0 | Injector assembly, #0, red |
| 12 | Injector assembly, #000, brown | |
| 12 | Injector assembly, #00, violet | |
| 13 | 40945SP | Clip, drain retaining |
| 14 | Injector plug with o-ring | |
| 15 | Screen, injector 5810 & 5812 | |
| 16 | 40946SP | Clip, brine retaining |
| 17 | O-ring-027 | |
| 18 | 40538SP | Retainer tank seal, 32 mm |
| 19 | 61419SP | Kit 1.05" distributor adapter |
| 20 | Meter assembly, 1 1/4", 5810 & 5812 | |
| 21 | 24509-01 | New proportional mixing |
| 22 | 28386-EMPTY | DLFC Kit 1" 7700/5810 10 to 25 gpm |
| 22 | 28386-ALL | DLFC 1", 10 - 15 - 20 - 25 GPM 7700/5810 |
| 23 | 28385-4 | DLFC ¾" 4 gpm 7700/5810 |
| 23 | 28385-2.4 | DLFC ¾" 2.4 gpm 7700/5810 |
| 23 | 28385-2 | DLFC ¾" 2.0 gpm 7700/5810 |
| 23 | 28385-7 | DLFC ¾" 7 gpm 7700/5810 |
| 23 | 28385-5 | DLFC ¾" 5 gpm 7700/5810 |
| 23 | 28385-3.5 | DLFC ¾" 3.5 gpm 7700/5810 |
| 23 | 28385-3 | DLFC ¾" 3 gpm 7700/5810 |
| 23 | DLFC ¾" 1.7 gpm 7700/5810 | |
| 23 | DLFC ¾" 4.5 gpm 7700/5810 | |
| 23 | DLFC ¾" 6 gpm 7700/5810 | |
| 24 | Cartridge, seals and spacers, 5810 |
