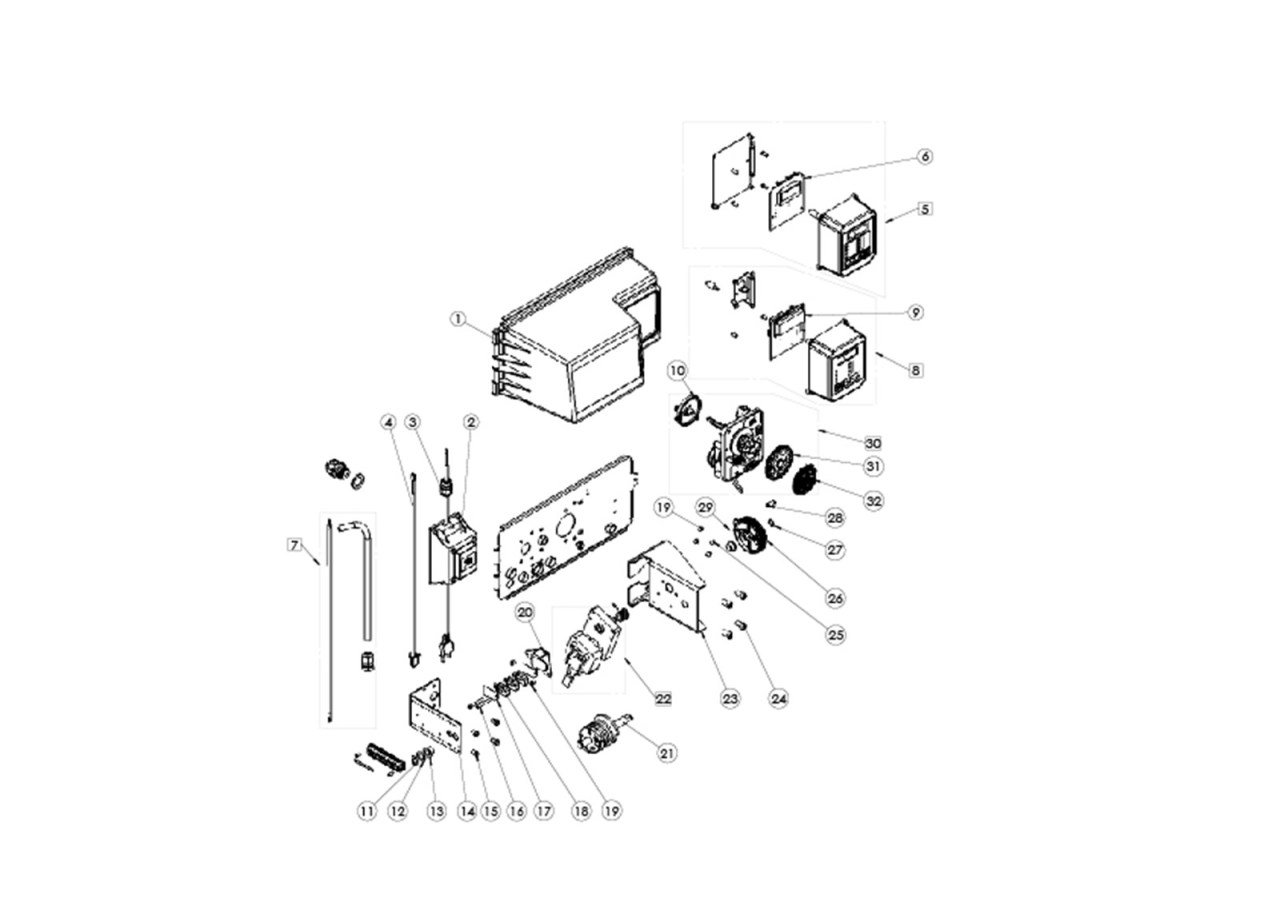

Power Head 3150 & 3900 Upper
Kategori
Stok Kodu
BFGJKVW5
| Nº | Vendor Code | Description |
|---|---|---|
| 1 | 26637 | Cover Assy Grey 3150/3900 Upper |
| 2 | 26260 | Transfo 60VA |
| 2 | 26259 | Transformer 105VA 3900 |
| 3 | 17967 | Liquid Tight |
| 4 | 19121-01 | Meter Cable SE/SXT 0,450 m |
| 5 | 27724-01 | Timer 3200 ET Indus Down flow |
| 5 | 27725 | Timer 3200 Et Industrial Up Flow |
| 6 | BU28529 | Circuit Board 3200 ET |
| 7 | 25353 | Guide cable & cable assy 3900/9500 |
| 7 | 25352 | Guide cable & cable assy 3150 2In |
| 8 | BU28713 | Timer Assy NXT |
| 9 | BR61702-03 | Circuit Board NXT |
| 10 | 24200 | Program Wheel Assy 160 min 3200/3210 |
| 10 | 24201 | Program Wheel Assy 160 min |
| 11 | 16051SP | Retaining Ring |
| 12 | 16059SP | Washer |
| 13 | 16052SP | Bushing |
| 14 | 16053 | Bracket Brine Side |
| 15 | 23728SP | Screw |
| 16 | 40080SP | Microswitch Screw 3150/3900 |
| 17 | 10302SP | Insulator |
| 18 | 10218SP | Microswitch assy for 5600 |
| 19 | 10872SP | Motor Mounting Screw |
| 20 | 17797 | Bracket Switch Mounting |
| 21 | 16494-04 | Cam Assy Upper Up Flow Grey 3150/3900 |
| 21 | 16494-05 | Cam Assy Upper Down Flow Black 3150/3900 |
| 22 | 29212 | Drive Motor Assy 3150/3900 24V |
| 23 | 15120-01 | Bracket Motor 3150/3900 |
| 24 | 21361SP | Screw |
| 25 | 11080SP | Flat Head Screw |
| 26 | 18963-31 | Drive Gear 3150/3900 Adapter |
| 27 | 16050SP | Retaining Ring |
| 28 | 11709 | Pin Link 3150/3900 |
| 29 | 11898SP | Clip 3150/3900 |
| 31 | 13009-21SP | 24H Gear |
| 32 | 40941 | Harness Upper Drive NXT |
| 32 | 40396 | Wire Harness 3150 / 3900 Upper |
| 32 | 24535 | Program Wheel Assy 375 m³ 2900/2910/3150 |
| 32 | 24536 | Program Wheel Assy 75 m³ 2900/2910/3150 |
| 32 | 25692 | Program Wheel Assy 240 m³ 3900 |
| 32 | 25693 | Program Wheel Assy 1200 m³ 3900 |
| 32 | 14860 | Skipper wheel 7 days assy |
| 32 | 24100 | Skipper wheel 12 days assy |
