c/w new top plate - Valve body
Kategori
Stok Kodu
BJKMRSV3

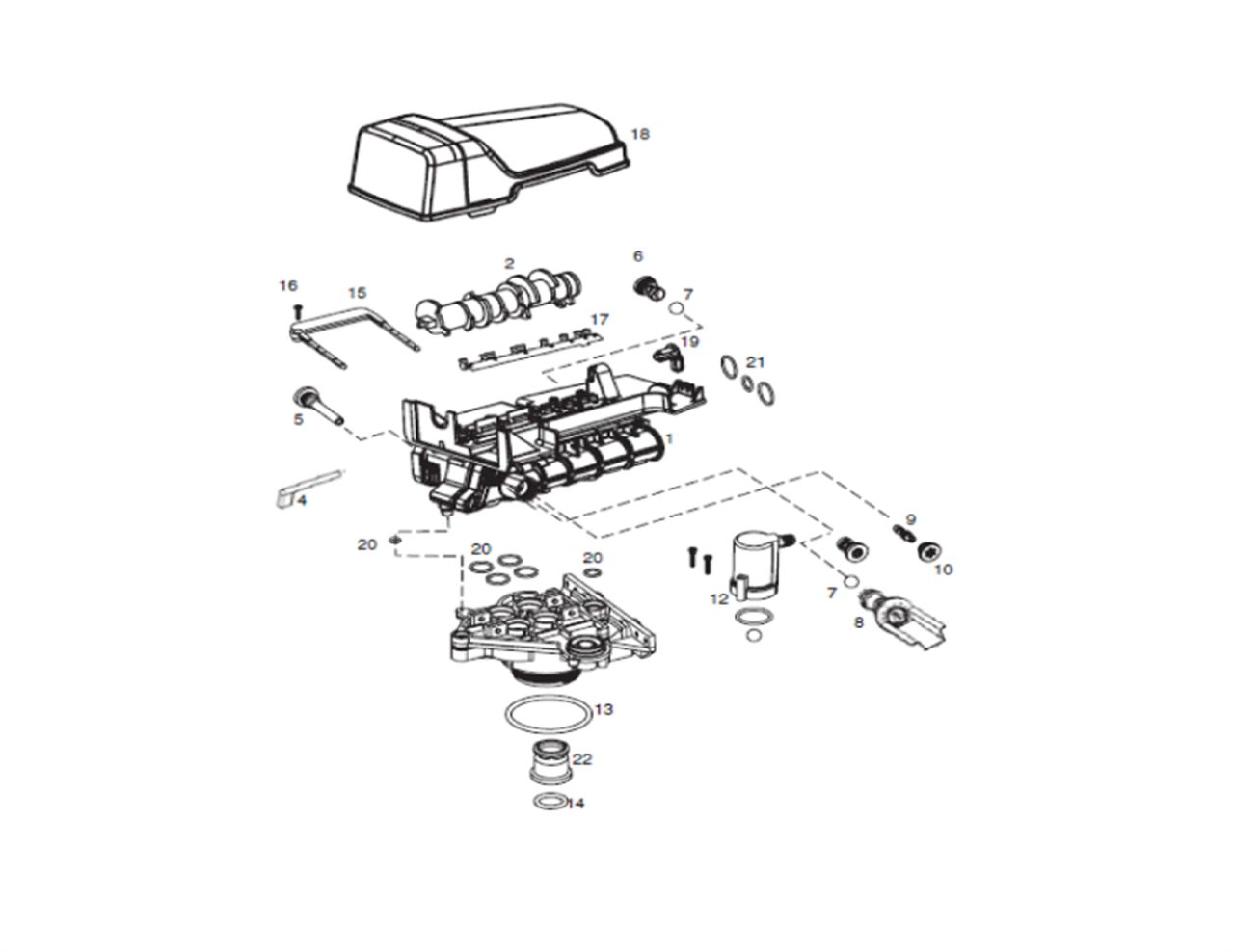

| Nº | Vendor Code | Description |
|---|---|---|
| Not Shown | 1239754 | Micro Switch Kit Top Mount 5A |
| Not Shown | 1000250 | Valve Disc Set |
| Not Shown | 3019871 | Top plate |
| Not Shown | Service Kit 255 400 | 255 400 Series Generic service kit |
| 1033026 | Long Rinse, Segmented | |
| 1032969 | Water Saver, Segmented | |
| 1 | 1000232 | 255/400 Valve Assembly, w/o Flow Controls |
| 2 | 1033025 | Extra Salt, Segmented |
| 4 | 1031391 | Timer Locking Pin |
| 5 | 1000226 | Screen/Cap Assembly w/O-Ring |
| 6 | 1000209 | DLFC No. 7 (1.2gpm; 4.5 lpm) |
| 6 | 1000210 | DLFC No. 8 (1.6 gpm; 6.1 lpm) |
| 6 | 1000211 | DLFC No. 9 (2.0 gpm; 7.6 lpm) |
| 6 | 1000212 | DLFC No. 10 (2.5 gpm; 9.5 lpm) |
| 6 | 1000213 | DLFC No. 12 (3.5 gpm; 13.2 lpm) |
| 6 | 1000214 | DLFC No. 13 (4.1 gpm; 15.5 lpm) |
| 6 | 1000215 | DLFC No. 14 (4.8 gpm; 18.2 lpm) |
| 7 | 1030502 | Flow Control Ball |
| 8 | 1034261 | Brine Refill Control 1 To 10 Lbs Salt |
| 8 | 1034263 | Brine Refill Control 1 To 19 Lbs Salt |
| 9 | 1032970 | Injector A - white |
| 9 | 1032971 | Injector B - Blue |
| 9 | 1032972 | Injector C - Red |
| 10 | 1000269 | Injector cap with o-ring |
| 13 | 1010154 | O-Ring 255 top of tank |
| 14 | 4001889 | O-Ring EP |
| 15 | 1031402 | Locking Bar |
| 16 | 1234170 | Screw, No 8 x 9/16" |
| 17 | 1235341 | Spring, One pc 255 |
| 18 | 3019870 | i-Lid Cover |
| 19 | 3019873 | Lever, Locking Cam |
| 20 | 1001404 | O-Ring Set |
| 21 | 1040459 | O-Ring Kit (Manifold) |
| 22 | 1001986 | 13/16 Rubber Insert (Optional) |
